CONTROL Panel eVISIO

These operator control systems are more than just an HMI or operator control unit. They contain a PLC in accordance with IEC 61131-3 and can independently take over regulation and control tasks. The product family masters the most difficult and complex automation tasks.

The use of powerful INTEL processors and the Windows CE operating system provides the user with additional functions such as web browsers, audio functions, PDF readers, etc. as well as additional interfaces.

The PLC performance is in the upper segment and is suitable for any fast process.

The individual operating philosophy is implemented with the comprehensive programming tool eStudio.

The CONTROL Panel eVISIO product advantages at a glance

IEC Standard 61131-3

All eVISIO control products include a PLC in accordance with IEC standard 61131-3 and can perform independent control tasks. Your individual operating philosophy is implemented with our WEB editor eDESIGN in combination with CODESYS.

Basic functions

Screen design, display fields, alarm messages, logging and recipe management, web visualization and file access via FTP are basic functionalities for us.

E/A-Systems

Control tasks can be solved in combination with the I/O system eCOMBO and eROBUSTO.

Topology

In bus, ring or line topologies, both field buses (CANopen, RTU Modbus) and Ethernet-based systems (TCP Modbus, EtherCAT, ProfiNET) can be networked. The system can be set up decentrally with redundancy functions. Freely programmable in master and slave modules.

Windows® IoT

The Visual Studio code allows programming in C, C++ or C# under Windows® IoT.

Linux

With the GNU Compiler Collection you can program in C or C++ under Linux.

Web-Based-Management

WBM helps you to configure the system. Access can be local or via Ethernet.

Multitouch support

Resistive and PCAP solutions are available.


VNC

For remote operation and display of a computer, a VNC client is available on the devices.


Customer-specific

Support your CI with our know-how in the design and use of different materials such as plastic, aluminium, glass, stainless steel.

Not too much and not too little

Scalable products with CPU performance and display diagonals adapted to your requirements are available for your solutions.

Maintenance-free

Increased profit on your system through low-maintenance, fanless and robust hardware.

High-quality appearance

Despite a high-quality design in aluminium, the panel impresses with its price / performance ratio.

Environmentally friendly

By using the latest embedded processors, high performance with minimal power consumption is available to you.

CONTROL Panel eVISIO Products

eVISIO
PMC505

  • QVGA 5,7", 320 x 240 Pixel
  • VGA 5,7" TFT LCD, 640 x 480 Pixel
  • Touchscreen, resistive
  • ARM® CortexTM  A9 Single/Dual/Quad Core 800 MHZ

eVISIO
PMC507

  • 7,0" TFT, 800 x 480 Pixel, (16:9)
  • PCAP Touchscreen (Cover Glas)
  • ARM® CortexTM  A9 Single/Dual/Quad Core 800 MHZ

eVISIO
PMC510

  • 10,1" TFT, 1280 x 800 Pixel, (16:9)
  • PCAP Touchscreen (Cover Glas)
  • ARM® CortexTM  A9 Single/Dual/Quad Core 800 MHZ

eVISIO
PMC715

  • 15,6" TFT, 1920 x 1080 Pixel, (16:9)
  • PCAP Touchscreen (Cover Glas)
  • Intel® AtomTM E8000 Quad Core 1,04 GHz bis zu 2 GHz burst

eVISIO
PMC721

  • 21,5" TFT, 1920 x 1080 Pixel, (16:9)
  • PCAP Touchscreen (Cover Glas)
  • Intel® AtomTM E8000 Quad Core 1,04 GHz bis zu 2 GHz burst

eVISIO
PMC405

  • 5,7" TFT
  • 320 x 240 pixels or 640 x 480 pixels
  • Touchscreen

eVISIO
PMC408

  • 8,4" TFT
  • 800 x 600 pixels
  • Touchscreen

eVISIO
PMC410

  • VGA 10,4" TFT
  • 640 x 480 pixels
  • SVGA 10,4" TFT
  • 800 x 600 pixels
  • Touchscreen

eVISIO
P090

  • 3,5"
  • 128 x 64 pixels
  • Membrane keyboard
  • 15 keys

eVISIO
P101

  • 3,1"
  • 122 x 32 pixels
  • Membrane keyboard
  • 9 keys

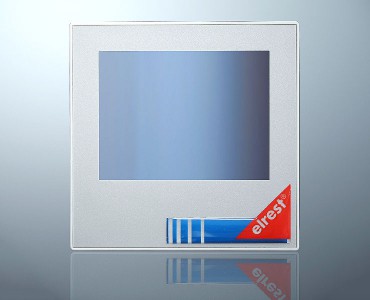

eVISIO
P203

  • 3,5"  TFT
  • 320 x 240 pixels
  • Touchscreen

eVISIO
P205

  • 5,7" STN / 320 x 240 pixels
  • 5,7" TFT /  640 x 480 pixels
  • Touchscreen
  • Microsoft Windows embedded CE 6.0
  • Landscape and portrait applicaple

eVISIO
P303

  • 5,7"
  • 320 x 240 pixels
  • Touchscreen
  • 18 keys
  • digital inputs / outputs

eVISIO
P305

  • 5,7"
  • 320 x 240 pixels
  • Touchscreen
  • 18 keys

eVISIO
P406

  • 6,5" TFT
  • 640 x 480 pixels
  • Touchscreen

eVISIO
P408

  • 8,4" TFT
  • 640 x 480 pixels
  • Touchscreen

eVISIO
P410

  • VGA 10,4" TFT
  • 640 x 480 pixels
  • QVGA 10,4" TFT
  • 800 x 600 pixels
  • Touchscreen

eVISIO
P412

  • 12,1" TFT
  • 800 x 600 pixels
  • Touchscreen
